Loading Bay Solutions

Dock Levellers Built Around Your Operation.

From straightforward swing-lip platforms to precision telescopic systems and retrofit-friendly modular docks, EVICK helps specify the right connection between your building and vehicle fleet.

Request a Free Site Survey Speak to our team0115 990 2603
3Dock formats
UKNationwide support
FullLifecycle service
The Right Interface

Bridge Vehicle and Warehouse Safely and Efficiently.

A dock leveller creates a controlled bridge across the difference in height and distance between the loading bay and a vehicle bed. Correctly specified equipment supports smoother movement of goods, reduces avoidable handling delays and helps create a more consistent loading process.

The best type depends on your vehicle mix, trailer positioning, load and handling equipment, frequency of use, building construction and the way the bay operates. EVICK surveys these factors before recommending a solution.

Compare the Options

Three Solutions. Different Strengths.

No single dock format is best for every site. Each design earns its place by solving a different operational or building constraint.

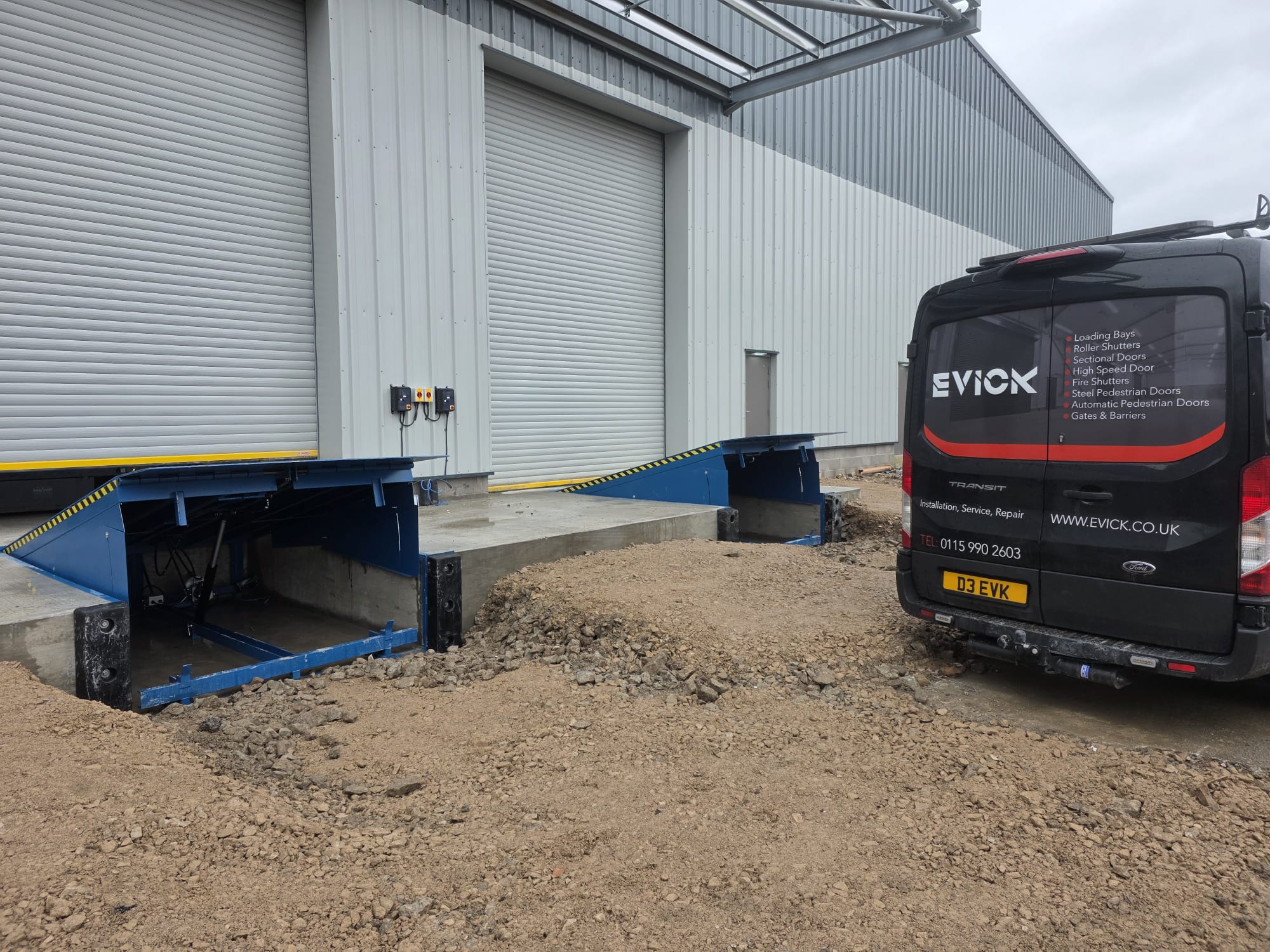

Swing-lip dock levellers installed at a new industrial building 01
Robust & Straightforward

Swing-Lip Dock Levellers

As the platform rises, a hinged lip swings outward before resting on the vehicle bed. Its direct operating cycle makes the swing-lip leveller a dependable and cost-effective choice for many conventional loading bays.

Works best when:

  • Vehicle types and deck positions are relatively consistent.
  • The operation needs a simple, repeatable loading cycle.
  • Robustness and value are the main priorities.
  • A conventional pit is available or planned.
Key advantage: a proven, uncomplicated design for general warehousing, manufacturing and distribution work.
Telescopic-lip dock levellers with extended loading platforms 02
Reach & Precision

Telescopic-Lip Dock Levellers

A telescopic lip extends horizontally from the platform, giving the operator greater control over the amount of overlap with the vehicle bed. This extra reach and positioning control makes it a flexible solution for more varied loading conditions.

Works best when:

  • The site receives a mixed fleet or vehicles stop at varying positions.
  • Precise lip placement is important for end loads or limited deck space.
  • Tail-lift pockets or unusual rear configurations must be considered.
  • The loading sequence requires more controlled platform positioning.
Key advantage: controlled extension and greater flexibility where a standard swinging lip may not provide the ideal overlap.

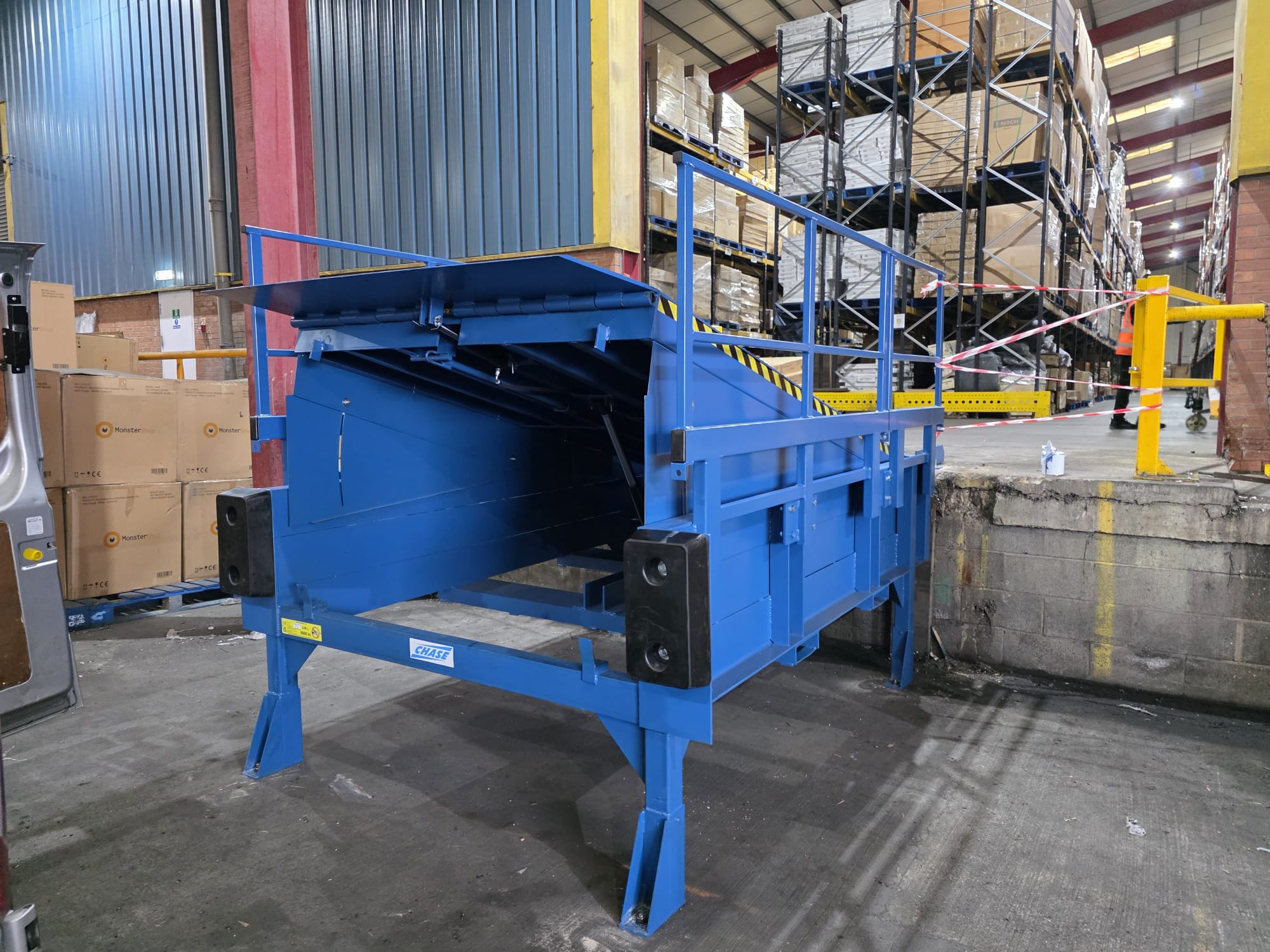

External modular dock leveller fitted to an existing warehouse 03
Retrofit & Expansion

Modular Dock Systems

A modular dock places the loading platform within a purpose-built external steel structure. It can combine a leveller, support frame, bumpers, rails and other bay equipment without requiring a conventional leveller pit inside the existing floor.

Works best when:

  • An existing building has no suitable dock pit.
  • Additional loading capacity is needed as part of a retrofit or expansion.
  • Internal structural work and disruption need to be reduced.
  • A configurable external loading bay is the practical route.
Key advantage: a flexible way to add or modernise a loading position outside the main building footprint.
At a Glance

Which Dock Fits Your Site?

SolutionIdeal applicationLip movementMain strengthTypical building approach
Swing lipRoutine loading with a relatively consistent fleetHinged lip swings outwardSimplicity, durability and valueUsually installed in a prepared pit
Telescopic lipMixed fleets and demanding vehicle positioningLip extends horizontallyPrecise reach and controlled overlapUsually installed in a prepared pit
Modular dockRetrofits, extensions and additional loading baysCan incorporate a suitable swing or telescopic levellerExternal, configurable constructionPurpose-built structure outside the building

This comparison is a guide. Final selection, dimensions, rated capacity, lip length and supporting structure must be confirmed through a site survey and project-specific assessment.

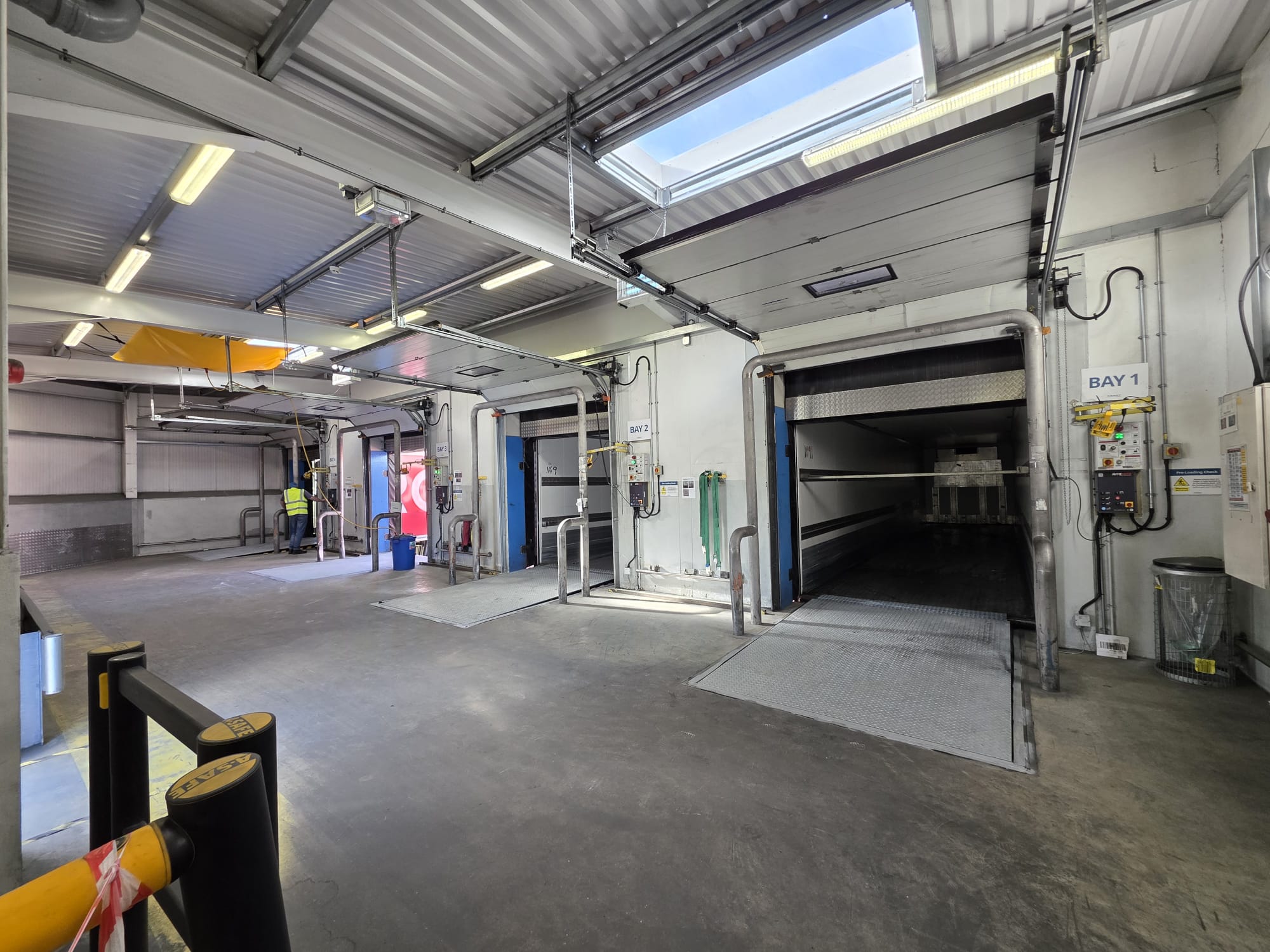

A complete loading bay system with doors, controls and dock platforms
Complete Loading Bays

More Than the Platform Alone.

A high-performing loading bay depends on each component working as one coordinated system. EVICK can survey, specify and support the complete bay rather than treating the leveller in isolation.

Sectional loading bay doors Dock shelters and seals Buffers and wheel guides Traffic lights and controls Safety barriers and interlocks Planned maintenance and repair
Specification Matters

What We Assess Before Recommending a Dock.

Vehicle Range

Vehicle bed heights, rear configurations, tail lifts and expected stopping positions.

Loads & Equipment

Goods, pallet trucks, forklifts, wheel loads, rated capacity and operating frequency.

Building & Civils

Pit dimensions, slab and supporting structure, yard gradient, drainage and clearances.

Operating Safety

Traffic movements, controls, guarding, bay sequence and site-specific risk controls.

Environment

Weather exposure, temperature control, cleanliness and energy-management priorities.

Lifecycle Support

Inspection access, servicing needs, parts support and future repair requirements.

Survey to Support

A Joined-Up Project Process.

  1. SurveyUnderstand vehicles, loads, workflows and the building.
  2. SpecifySelect the dock format and supporting equipment.
  3. CoordinateWork with the client, builder and other trades.
  4. InstallFit, test and commission the loading bay system.
  5. MaintainProvide planned servicing, repairs and ongoing support.
Common Questions

Dock Leveller FAQs.

Is a telescopic dock always better than a swing lip?

No. A telescopic lip offers extra reach and positioning control, while a swing lip can be the simpler and more economical solution for consistent loading conditions. The right choice depends on how the bay is used.

Can EVICK replace a leveller in an existing pit?

Yes, subject to survey. We assess the existing pit, supporting structure, dimensions, services and operational requirements before specifying a suitable replacement or adaptation.

Can a dock be added to a building without an existing pit?

A modular external dock can often provide a practical route where an internal pit is not available. The structure, access, yard layout and foundations still need project-specific assessment.

Do dock levellers need planned maintenance?

Yes. Dock levellers are working loading-bay machines exposed to frequent movement and heavy loads. Planned inspection and maintenance help identify wear, protect reliability and support safe operation.

Plan Your Loading Bay

Not Sure Which Dock Is Right?

Book a site survey and let EVICK assess the vehicles, building and loading operation before recommending the best-fit solution.

Request a Free SurveyCall EVICK0115 990 2603
